CR110 constructed by professional racing mechanic
Larry Shultz USA

I am trying to make a very nice CR110. In 1987 & 1988 I was HRC mechanic for Niall Mackanzie and Wayne Gardner.

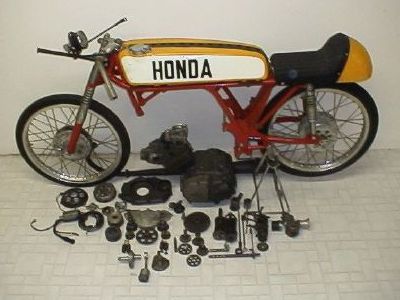

Before the restoration work. I started about 3 years ago (2000), but I have not worked on it all the time. I have done all work myself, but I do have the help of an expert machinist when I need it.

Process of the restoration work.

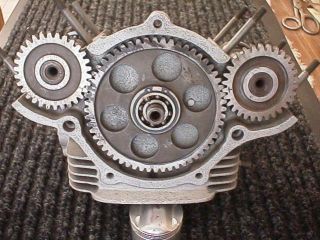

head with cams


tach drive

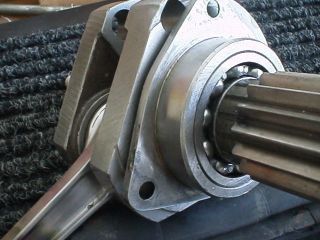

crankshaft

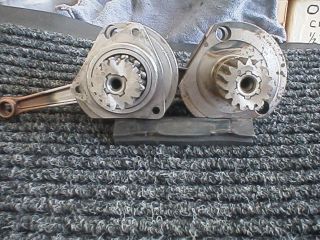

different types of primary drive

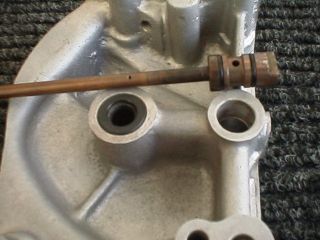

clutch rod detail

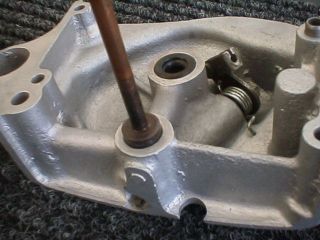

clutch rod detail

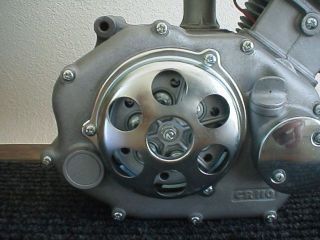

dry clutch

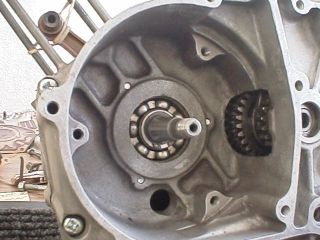

intrusion of gearbox into ignition

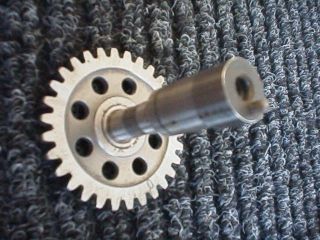

point cam shaft

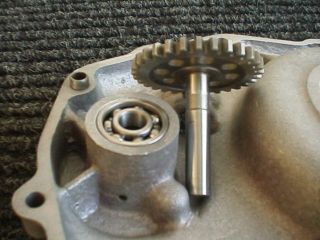

point cam shaft with point cam

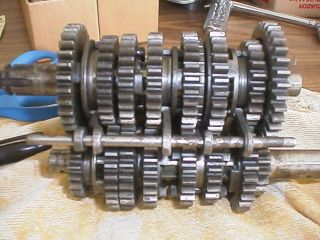

gearbox

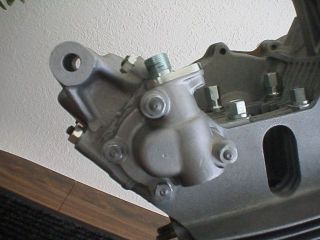

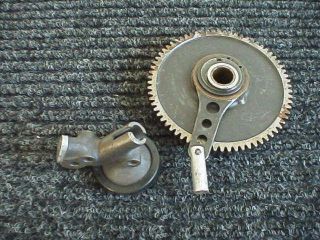

oil pump assy

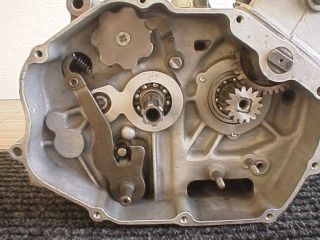

primary case

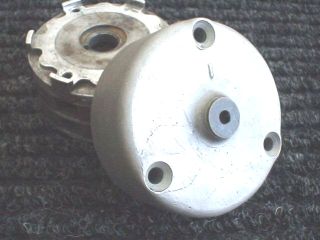

spin filter

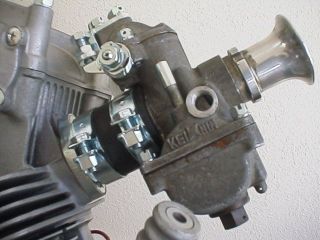

carb (on motor)

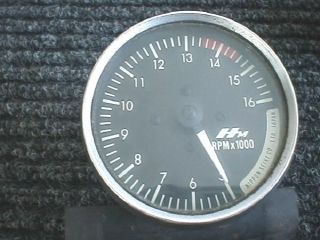

tachometer

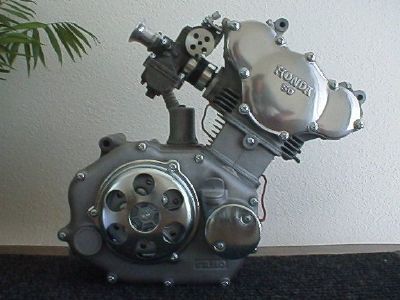

Completed engine

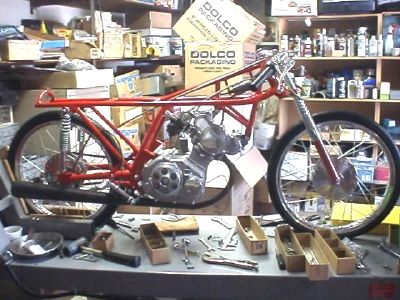

At the workshop.

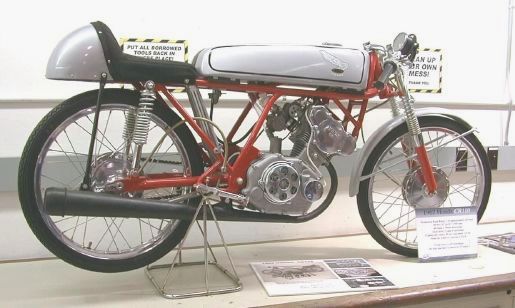

Completed

Copyright (c)Larry Shultz 2003
